Stihl TS350 Cut Off Saw

Stihl TS350 Cut Off Saw - Right side view

Stihl TS350 Cut Off Saw

The Stihl TS350 originated in 1993 and many are still running today! Be aware that the specifications vary slightly depending on the age of the machine and is different to that of the later TS350S. In particular the later models boast an increased engine capacity.

*This post includes sponsored ads, which means we may receive a small commission if you choose to purchase through links we provide (at no extra cost to you). As a member of the eBay Partner Network we earn from qualifying purchases.

The picture here is a stock photo of this model of saw, I do own one but it’s in a hundred pieces at the moment in the process of a most uneconomical rebuild. My Stihl TS350 is beyond my maintenance tips for now!

Stihl TS350 Bought on Ebay

I bought the saw for next to nothing on Ebay and was assured that it would run, don’t they all say that? (heavy sarcasm there…) Of course it certainly didn’t run and it was quite clear why with a minimum of examination.

Carburetor Check

Tillotson HL292 carburetor removed from Stihl TS350 cut off saw

Firstly where the carburetor usually is, there appeared to be a mound of semi-solidified brick dust. Upon cleaning the filth away I discovered that there actually was a Tillotson HL292B carburetor under there. It was a bit stiff and in need of a thorough clean inside and out. I found a handy guide to Tillotson carburetors and will be adding the RK-114HL carburetor repair kit to the list of new parts. You can check the price of the RK-114HL kit here on Ebay.

First Compression Test

My first compression test showed a slight lack of compression but nothing to worry about, or so I thought. The engine turned over cleanly so I made a few attempts at starting it… nothing… not even a cough! A compression tester is a really handy tool for gauging the condition of any engine. They are widely available, check out the availability on Ebay.

Ignition Check

I used a spark plug tester to check out the state out the ignition. At last some good news, there was a spark! The spark plug tester is a really useful diagnostic tool to have in your toolbox. It gives you a really quick go / no go indication for a non starting gasoline engine. They are very affordable too, check the prices on Ebay.

Fuelling Check

Now I was left wondering how well the carburetor was functioning, maybe this was a fuelling problem. I dribbled a little bit of fuel into the top of the cylinder and attempted to start the engine. A simple test to see if I could get even the smallest bit of ignition. Still nothing.

Compression Test

At this point I decided to try my compression test again. I had a theory that the fuel I dribbled into the cylinder had cleaned the piston and bore and may have loosened things up a bit. Sure enough the new compression test showed a deeply disappointing and drastic loss of compression!

Stihl TS350 Cylinder and Piston Check

Now it was time to check out the inside of the cylinder. I stripped off the carburetor and exhaust, and removed the cylinder block. The inside of the cylinder showed some interesting signs of wear. Upon checking the piston I discovered that the skirt on one side was severely burned away.

Stihl TS350 burnt piston removed from cylinder

So now I knew what I had! A saw that had overheated to the point of terminal damage. Question is now, whether the crank and bearings were shot too and the whole thing would be better in the scrap bin. It almost certainly would be best in the scrap bin, but I’m a sentimental old sod and can’t bear to throw away an engine that I might just breathe a little life into!

Standby for more of this tale and photos!

Stihl TS350 Cut Off Saw Specifications

Model NameTS350 early models ( later models and TS350S )
Engine Typesingle-cylinder, two-stroke, air cooled
Engine Capacity56cc, 3.39cu in ( 60cc, 3.68cu in )
Cylinder Bore47mm, 1.87in ( 49mm, 1.92in )
Piston Stroke32mm, 1.26in ( 32mm, 1.26in )
Ignition TypeElectronically Controlled Magneto
Spark Plug TypeNGK BPMR 7A (EBay) or Bosch WSR6F (EBay)
Spark Plug Gap0.50mm, 0.020in
Carburetor TypeTillotson HL diaphragm type
Fuel Tank Capacity0.55litre, 1.2pint
Fuel Mixture50:1 using high quality two-stroke oil for air-cooled engines
Weight9.55kg, 21lb
Catalytic ConverterNo
Abrasive Wheel300mm, 12in or 350mm, 14in
Cutting Depth ( 300mm wheel )100mm, 3.9in
Cutting Depth ( 350mm wheel )115mm, 4.5in

Stihl TS350 Manuals

Stihl TS350 Operators Manual
Operators Manual

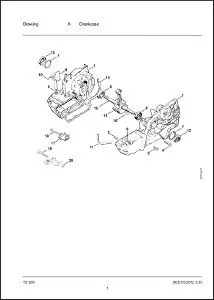

Stihl TS350 Spare Parts Manual
Spare Parts Manual

Stihl TS350 Spare Parts Availability

Despite being almost 30 years old, the Stihl TS350 has a remarkable selection of spare parts available. Testament maybe to its popularity and versatility as a construction site tool. Certainly it’s an indication of how reliable these saws can be when treated well! Take a look on Ebay and you’ll find over 1500 spares available for this venerable old machine. Everything is there, from replacement cylinder and piston kits to fuel filters and housings.

TS350 Cut Off Saw Spares on Ebay

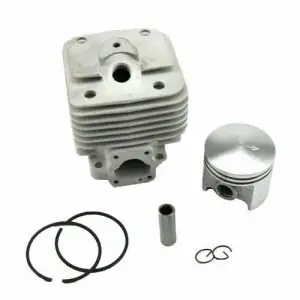

Stihl TS350 Cylinder and Piston Kit
Cylinder and Piston Kit

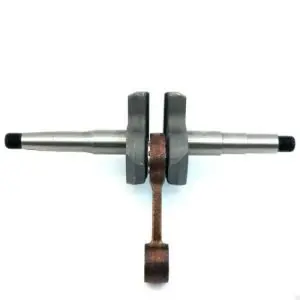

Stihl TS350 Crankshaft Assembly
Crankshaft Assembly

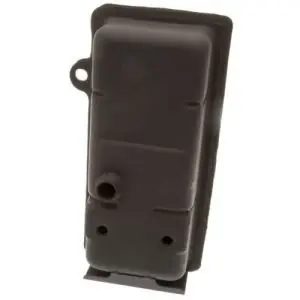

Stihl TS350 Muffler

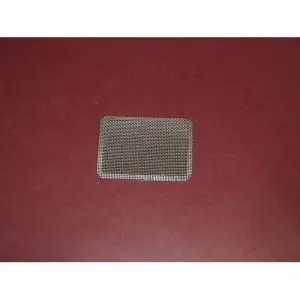

Stihl TS350 Spark Arrester
Spark Arrester

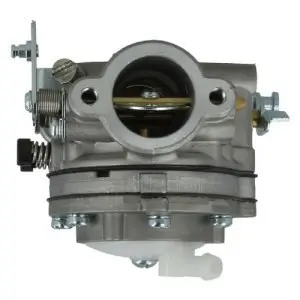

Stihl TS350 Carburetor

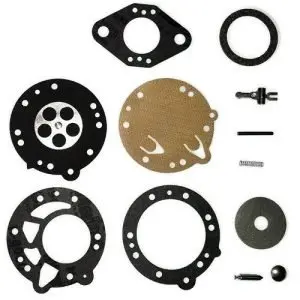

Tillotson HL292 RK-114HL Repair Kit
Tillotson HL292 Carb Repair Kit

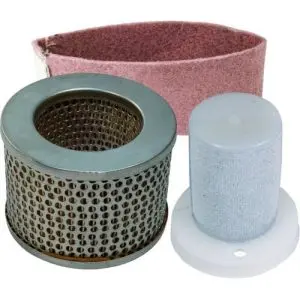

Stihl TS350 Air Filter
Air Filter

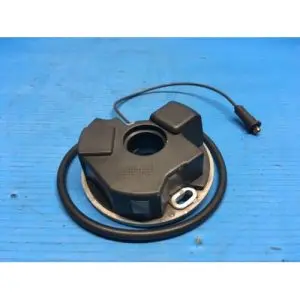

Stihl TS350 Ignition Module
Ignition Module
Bosch WSR6F Spark Plug
Spark Plug

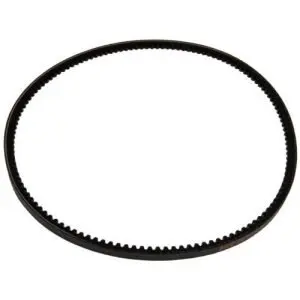

Stihl TS350 Drive Belt
Drive Belt

Small Engine Repair Tools on Ebay

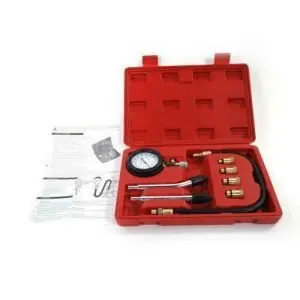

Engine Compression Tester
Engine Compression Tester
Ignition Tester
Ignition Tester

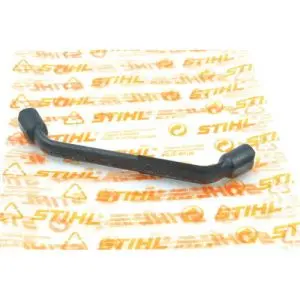

Stihl TS350 Piston Stop
